Discovering Wireshark: 7 Features to Analyze a PCAP File Using Wireshark


7 Features To Analyze A Pcap File Using Wireshark

Every security analyst would have used or at least heard of the tool named Wireshark. In todays article, we are looking into what is Wireshark, how to download it and some features to analyze a PCAP file using Wireshark. Before going to see how to analyze a PCAP file, let’s see what is Wireshark and its key features with supported interfaces.

What is Wireshark and How to Download It?

Wireshark is a network analyzer that can be used to capture and analyze network traffic. It is widely used by network administrators, security professionals, and students to troubleshoot network problems, investigate security incidents, and learn about network protocols. Wireshark supports a wide variety of network protocols and is available for various platforms, including Windows, macOS, and Linux. Wireshark is available for free download from the Wireshark website. The download includes the Wireshark application, as well as the Npcap library, which is required for packet capture.

To install Wireshark, follow these steps:

  1. Go to the Wireshark website and click on the “Download” button.

  2. Select the appropriate installer for your operating system.

  3. Run the installer and follow the on-screen instructions.

Once Wireshark is installed, you can start capturing and analyzing network traffic. To do this, follow these steps:

  1. Open Wireshark.

  2. Click on the “Interfaces” tab.

  3. Select the interface that you want to capture traffic from.

  4. Click on the “Start” button to start capturing traffic.

Wireshark will display a list of all the packets that it has captured. You can view the contents of each packet by clicking on it. Wireshark also provides a variety of tools that you can use to analyze the data.

Top Key Features of Wireshark:

Wireshark is a powerful and versatile network protocol analyzer with numerous key features. Some of the most important features include:

1. Deep Inspection: Dissecting Network Protocols Layer by Layer

Wireshark boasts the ability to analyze hundreds of distinct network protocols, offering users a comprehensive view of each packet’s contents. This deep inspection functionality allows for a thorough understanding of the intricacies of network communications, equipping users with the knowledge to efficiently diagnose and resolve network issues.

2. Live Capture: Witnessing Network Traffic in Real-Time

With its real-time live capture capabilities, Wireshark enables users to view and scrutinize network packets as they traverse the network. This feature proves invaluable for troubleshooting live network problems or monitoring network activity, ensuring optimal network performance and reliability.

3. Offline Analysis: Reviewing Network Traffic at Your Convenience

Wireshark’s offline analysis feature allows users to examine previously captured network traffic from files saved in a variety of formats, such as PCAP or PCAPNG. This functionality is ideal for revisiting network activity at a later time or sharing network captures with colleagues for collaborative investigation and problem-solving.

4. Filtering: Zeroing in on Relevant Network Data

Powerful filtering capabilities in Wireshark enable users to refine displayed traffic based on specific protocols, IP addresses, ports, or other criteria. This targeted approach streamlines complex network traffic analysis, allowing users to concentrate on pertinent data and swiftly identify potential issues.

5. Color Coding: Visualizing Packet Types and Status

To facilitate pattern recognition and issue identification within captured traffic, Wireshark employs color coding to visually distinguish various packet types and their status. This feature enhances user experience and aids in the efficient analysis of network data.

6. Graphical and Statistical Analysis: Visualizing Network Activity

Wireshark offers a diverse array of graphical and statistical tools, including flow graphs, protocol hierarchy statistics, and conversation statistics. These instruments assist users in visualizing network activity, enabling the detection of potential bottlenecks or anomalies that may impact network performance.

7. Customization: Tailoring Wireshark to Your Unique Needs

As a highly customizable tool, Wireshark allows users to create and implement custom dissectors, plugins, and display filters. This adaptability ensures that Wireshark remains relevant to specific use cases and can accommodate the ever-evolving landscape of network protocols.

8. Exporting Data: Sharing Your Findings

With the ability to export ca    ptured data in a variety of formats, such as CSV, XML, or plain text, Wireshark makes it simple to share findings with colleagues or conduct further analysis and reporting with external tools.

9. Platform Compatibility: Accessible Across Operating Systems

Wireshark’s availability across multiple platforms, including Windows, macOS, and Linux, broadens its user base and ensures accessibility to a diverse array of network professionals and enthusiasts.

10. Open Source: Fostering Collaboration and Innovation

As an open-source software, Wireshark’s source code is publicly accessible and modifiable by the community. This open model encourages collaboration, innovation, and continuous improvement, solidifying Wireshark’s position as the ultimate network protocol analyzer.

11. Graphical User Interface: User-Friendly and Intuitive Design

Wireshark’s Graphical User Interface (GUI) sets it apart by providing a user-friendly and intuitive experience, making network analysis accessible to both beginners and seasoned professionals. The visually appealing layout organizes data and features in an easy-to-navigate manner, ensuring users can efficiently explore and analyze network traffic without the steep learning curve associated with many other network analysis tools. The GUI design not only streamlines the process of capturing and filtering packets but also simplifies the visualization and interpretation of network data, empowering users to harness the full capabilities of Wireshark.

Types of Interfaces Supported by Wireshark

Wireshark is designed to work with a variety of network interfaces, making it a versatile and adaptable network protocol analyzer. Below, we explore the primary types of interfaces supported by Wireshark:

1. Ethernet Interfaces

As one of the most common network interface types, Ethernet interfaces are widely supported by Wireshark. This allows users to capture and analyze traffic on Local Area Networks (LANs) that use Ethernet as the transmission medium.

2. Wireless Interfaces

Wireshark supports capturing and analyzing traffic from wireless interfaces, such as Wi-Fi. This enables users to monitor and troubleshoot issues on wireless networks and gain insights into the performance of Wi-Fi connections.

3. USB Interfaces

With support for USB interfaces, Wireshark can analyze traffic from USB devices and connections. This is particularly useful for diagnosing and resolving issues related to USB communications, such as data transfer problems or device incompatibilities.

4. Loopback Interfaces

Wireshark’s support for loopback interfaces allows users to capture and analyze traffic generated within the same device, without the need for an external network connection. This functionality is useful for testing and debugging applications that communicate over network protocols.

5. Virtual Interfaces

Virtual interfaces, such as those used by virtual machines or container environments, are also supported by Wireshark. This enables users to capture and analyze network traffic within virtualized environments, which is essential for monitoring and troubleshooting virtual network configurations.

6. Remote Interfaces

Wireshark can be configured to capture traffic from remote interfaces by using tools like rpcapd or sshdump. This feature allows users to analyze network traffic from remote devices, providing valuable insights for managing and optimizing distributed networks.

Features to Analyze a PCAP File Using Wireshark

Wireshark, a powerful network analysis tool, boasts an array of features that cannot be covered in a single article. In this comprehensive post, we will explore essential features required to effectively analyze a PCAP file using Wireshark.

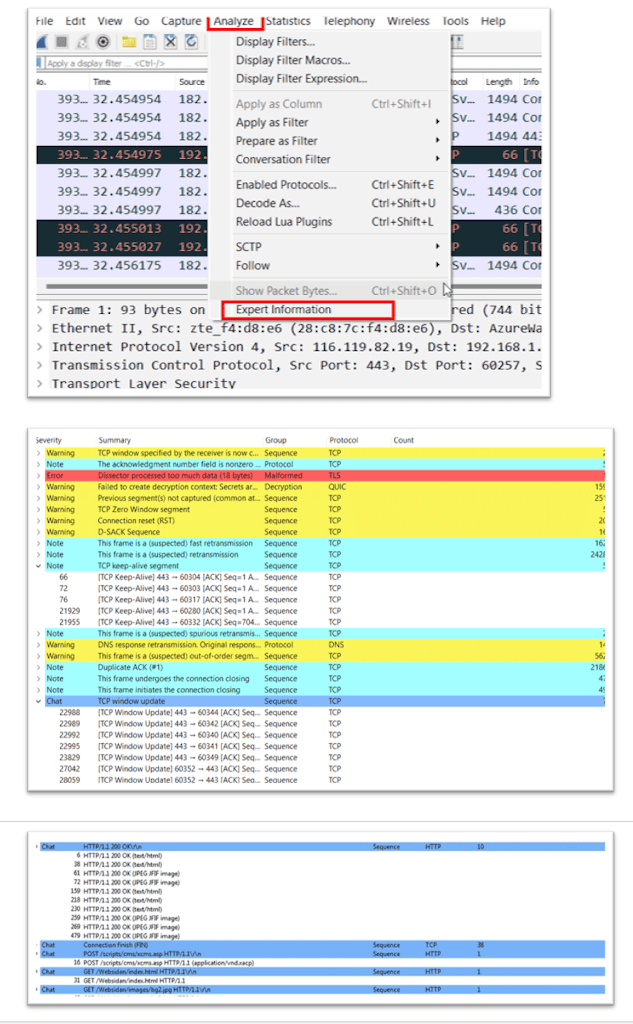

Expert Information

To access expert information, navigate to Analyze > Expert Information. This feature provides an insightful overview of the network traffic contained within the PCAP file, enabling you to analyze a PCAP file using Wireshark more effectively. Key details, such as severity, group, and protocol used, are displayed in a clear, organized format. While image files are visible, they cannot be opened directly. Utilize the search box at the bottom to quickly locate specific information.

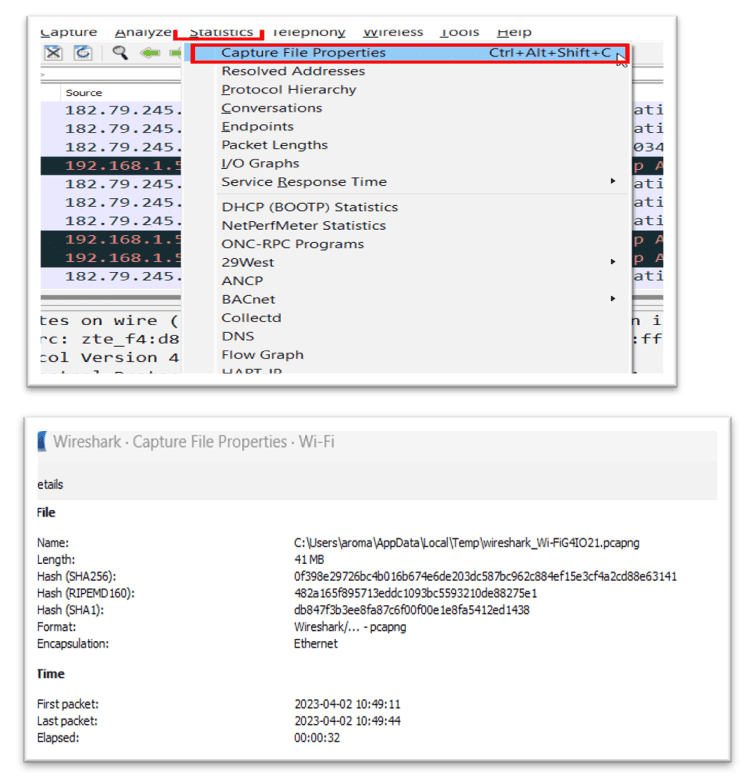

Capture File Properties

To examine capture file properties, go to Statistics > Capture File Properties. This section displays general information about the PCAP file, including the first and last packets, timestamps, and the total number of packets. It also reveals the system configuration of the device that captured the PCAP file. Users have the option to add comments and save their findings for future reference, making it easier to analyze a PCAP file using Wireshark.

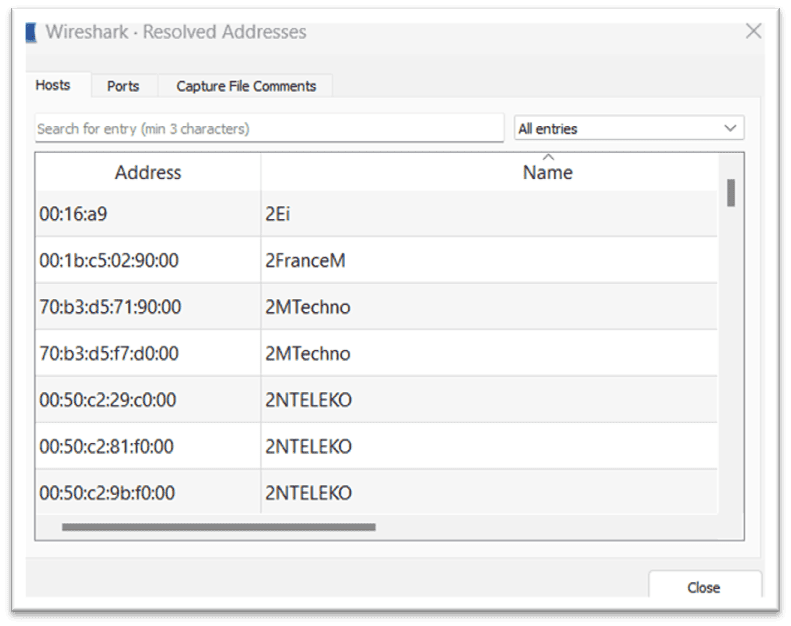

Resolved Addresses

To view resolved addresses, navigate to Statistics > Resolved Addresses. Wireshark will display any resolved IPs and the ports involved in the communication. This section may contain a wealth of information to sift through, providing valuable insights when you analyze a PCAP file using Wireshark.

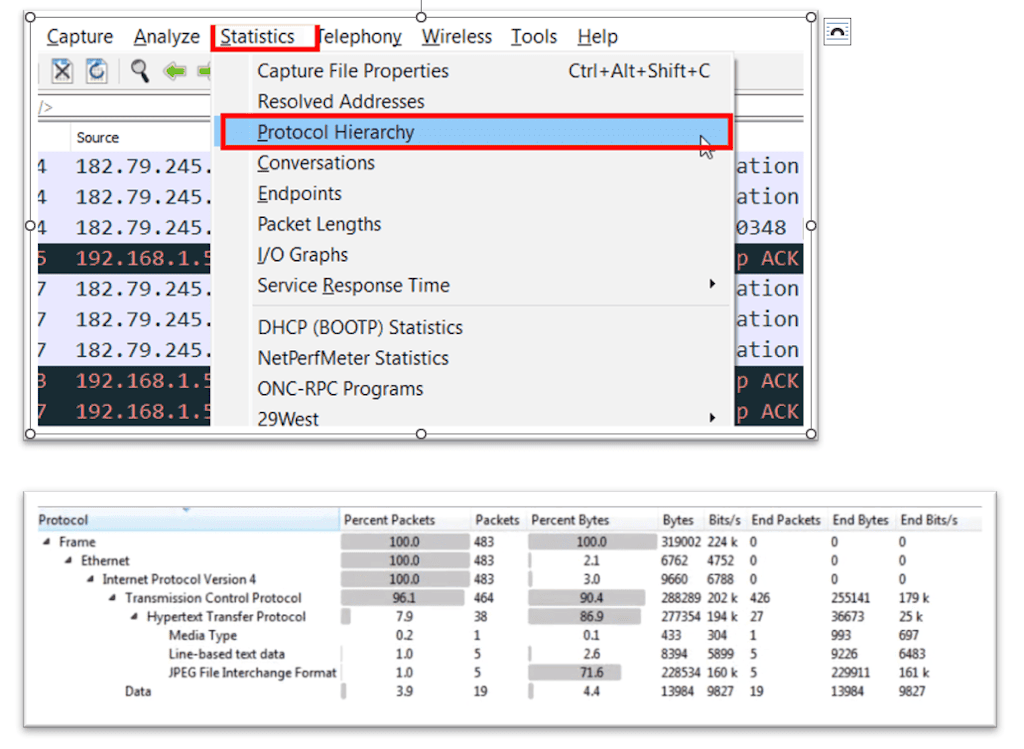

Protocol Hierarchy

To explore protocol hierarchies, go to Statistics > Protocol Hierarchy. This feature offers a detailed breakdown of protocols within the network capture. Users can view the percentage of each protocol within the PCAP, along with the number of packets, percent bytes, and bits per second. All types of traffic, such as TCP and UDP, are visible.

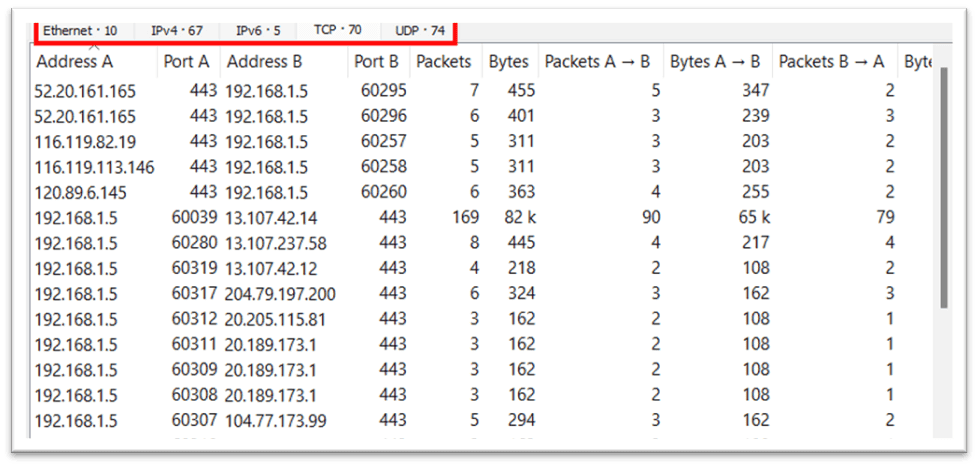

Conversation

To access conversations, head to Statistics > Conversation. This section showcases TCP-based conversations, with source and destination IPs listed alongside their respective ports. Conversations involving other protocols, like UDP, can also be found here.

Input Output Graph

To investigate input-output graphs, navigate to Statistics > I/O Graph. This feature helps identify traffic spikes and displays additional data, including TCP errors in traffic, which are highlighted for easy identification.

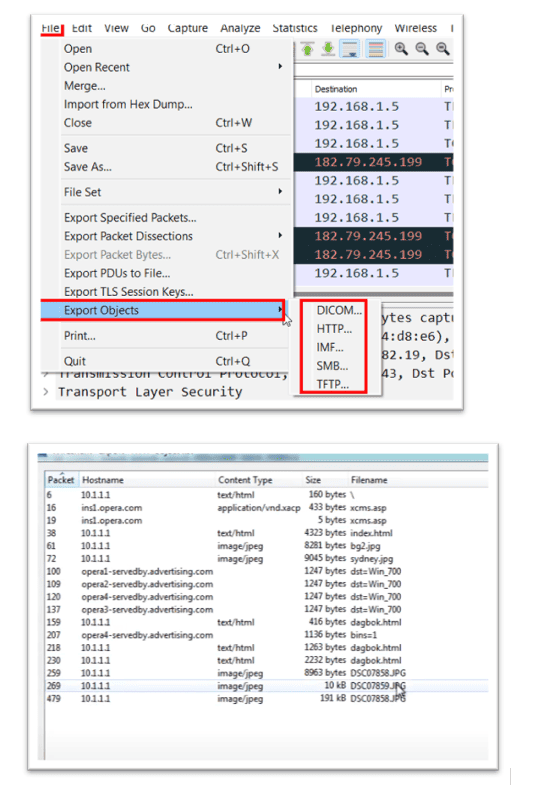

Export Object

To export objects, go to File > Export Objects. This useful feature enables the extraction and export of objects, such as JPEG files, HTML files, and ASP files, if any HTTP communication was captured by Wireshark. All extracted files can be saved for further examination.

Conclusion

By leveraging Wireshark’s robust features, network analysts can effectively dissect and examine PCAP files to gain invaluable insights into network traffic. This comprehensive guide serves as a solid foundation for analyzing PCAP files using Wireshark. With practice and experience, users can further explore and utilize the software’s full potential to outrank other websites and establish themselves as experts in the field.

We hope this article helped you know what is Wireshark, how to download it and some features to analyze a PCAP file using Wireshark. Thanks for reading this post. Please share this post and help secure the digital world. Visit our social media page on Facebook, InstagramLinkedInTwitterTelegramTumblr, & Medium and subscribe to receive updates like this.
